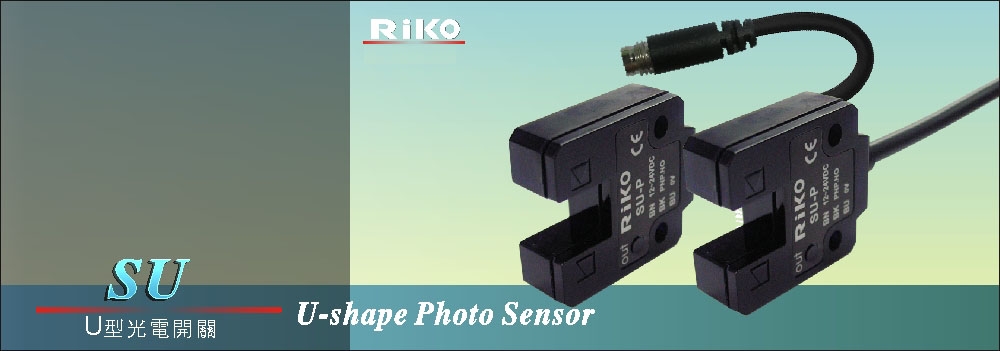

一、SU 系列Hot NewU型光電開關，間距為10mm
規格表
|
Model / 型號
|
SU-N
|
SU-N2
|
SU-P
|
SU-P2
|
|
SU-ND
|
SU-N2D
|
SU-PD
|
SU-P2D
|
|
Sensing distance / 檢出距離
|
10mm
|
|
Min. detection object / 最小檢測物
|
Opaque / 非透明體 ( O0.5 x 10.0mm )
|
|
Emitting light / 發光源
|
Infrared LED 940 nm
|
|
Operating voltage / 工作電壓
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗電流
|
20 mA Max.
|
|
Load current / 負載電流
|
100mA Max. at DC24V
|
|
Output type
/ 輸出模式
|
NO Type
|
N:NPN N.O. (dark operated)
|
P:PNP N.O. (dark operated)
|
|
NC Type
|
N2:NPN N.C. (light operated)
|
P2:PNP N.C.(light operated)
|
|
Response time / 反應時間
|
1 ms Max.
|
|
Ambient illumination/使用環境光源
|
Incandescent light / 白光 : 1,000 lux max.
|
|
Insulation resistance / 隔離阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 絕緣耐壓
|
AC500V 60Hz for 60 Sec.
|
|
Operating temperature/工作溫度范圍
|
-10℃ ~ + 55℃
|
|
Ambient humidity/濕度范圍
|
45% ~ 85% RH 相對濕度
|
|
Protection degree / 防水等級
|
IP64
|
|
Vibration resistance / 耐震頻率
|
1.5-mm peak-to-peak amplitude, 10 to 55 Hz, 2 hours each in X, Y, and Z directions
|
|
Shock resistance / 耐震度
|
50G, repeated 10 times each in X, Y, and Z directions
|
|
Material / 外觀材質
|
PC
|
|
Wiring method / 出線方式
|
Pre-wired
O4.2 x 2 M / 3-wires
|
M8 pigtailed type
/ M8 接頭15cm電線式
|
Pre-wired
O4.2 x 2 M / 3-wires
|
M8 pigtailed type
/ M8 接頭15cm電線式
|
|
Weight /重量
|
Approx.55g
|
Approx.35g
|
Approx.55g
|
Approx.35g
|
尺寸圖
應用例
|
Speed monitoring / 速度檢出
|
Machine positioning / 位置檢出
|
|
Rotary cam sensing / 定位檢出
|
|
二、SU15 系列U型光電開關，間距為15mm
規格表
|
Model / 型號
|
SU15-N
|
SU15-N2
|
SU15-P
|
SU15-P2
|
|
SU15-ND
|
SU15-N2D
|
SU15-PD
|
SU15-P2D
|
|
Sensing distance / 檢出距離
|
15mm
|
|
Min. detection object / 最小檢測物
|
Opaque / 非透明體 ( O0.5 x 10.0mm )
|
|
Emitting light / 發光源
|
Infrared LED 940 nm
|
|
Operating voltage / 工作電壓
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗電流
|
25 mA Max.
|
|
Load current / 負載電流
|
100mA Max. at DC24V
|
|
Output type
/ 輸出模式
|
NO Type
|
N:NPN N.O. (dark operated)
|
P:PNP N.O. (dark operated)
|
|
NC Type
|
N2:NPN N.C. (light operated)
|
P2:PNP N.C.(light operated)
|
|
Response time / 反應時間
|
1 ms Max.
|
|
Ambient illumination/使用環境光源
|
Incandescent light / 白光 : 1,000 lux max.
|
|
Insulation resistance / 隔離阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 絕緣耐壓
|
AC500V 60Hz for 60 Sec.
|
|
Operating temperature/工作溫度范圍
|
-10℃ ~ + 55℃
|
|
Ambient humidity/濕度范圍
|
45% ~ 85% RH 相對濕度
|
|
Protection degree / 防水等級
|
IP64
|
|
Vibration resistance / 耐震頻率
|
1.5-mm peak-to-peak amplitude, 10 to 55 Hz, 2 hours each in X, Y, and Z directions
|
|
Shock resistance / 耐震度
|
50G, repeated 10 times each in X, Y, and Z directions
|
|
Material / 外觀材質
|
PC
|
|
Wiring method / 出線方式
|
Pre-wired
O4.2 x 2 M / 3-wires
|
M8 pigtailed type
/ M8 接頭15cm電線式
|
Pre-wired
O4.2 x 2 M / 3-wires
|
M8 pigtailed type
/ M8 接頭15cm電線式
|
|
Weight /重量
|
Approx.55g
|
Approx.35g
|
Approx.55g
|
Approx.35g
|
尺寸圖
應用例
|
Speed monitoring / 速度檢出
|
Machine positioning / 位置檢出
|
|
Rotary cam sensing / 定位檢出
|
|
三、SU07 系列Hot NewU型光電開關，間距為7mm
規格表
|
Output type
/ 輸出模式
|
NPN D.on
|
SU07-N
|
SU07-ND1
|
|
PNP D.on
|
SU07-P
|
SU07-PD1
|
|
Sensing distance / 檢出距離
|
7mm
|
|
Min. detection object / 最小檢測物
|
Opaque / 非透明體 ( O0.5 x 10.0mm )
|
|
Emitting light / 發光源
|
Red LED 660 nm
|
|
Operating voltage / 工作電壓
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗電流
|
18 mA Max.
|
|
Load current / 負載電流
|
100mA Max. at DC24V
|
|
Response time / 反應時間
|
1 ms Max.
|
|
Ambient illumination/使用環境光源
|
Incandescent light / 白光 : 1,000 lux max.
|
|
Insulation resistance / 隔離阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 絕緣耐壓
|
AC500V 60Hz for 60 Sec.
|
|
Operating temperature/工作溫度范圍
|
-10℃ ~ + 55℃
|
|
Ambient humidity/濕度范圍
|
35% ~ 85% RH 相對濕度
|
|
Protection degree / 防水等級
|
IP64
|
|
Vibration resistance / 耐震頻率
|
1.5 mm peak to peak amplitude, 10 to 55 Hz, 2 hours in X,Y and z directions
|
|
Shock resistance / 耐震度
|
50 G repeated 10 times each in X,Y and Z directions
|
|
Material / 外觀材質
|
PC
|
|
Wiring method / 出線方式
|
Pre-wired O4.2 x 2 M / 3-wires
|
M8 connector / M8 接頭式
|
|
Weight /重量
|
Approx.65g
|
Approx.25g
|
尺寸圖
應用例
四、SU30-2 系列Hot NewU型光電開關，間距為30mm，且有兩組發射接收
規格表
|
Output type
/ 輸出模式
|
NPN D.on
|
SU30-N
|
SU30-NK1
|
|
PNP D.on
|
SU030-P
|
SU07-PK1
|
|
Sensing distance / 檢出距離
|
30mm
|
|
Min. detection object / 最小檢測物
|
Opaque / 非透明體 ( O1.0 x 10.0mm )
|
|
Emitting light / 發光源
|
Infrared LED 940 nm
|
|
Operating voltage / 工作電壓
|
DC12 ~ 24 V
|
|
Current Consumption / 消耗電流
|
20 mA Max.
|
|
Load current / 負載電流
|
100mA Max. at DC24V
|
|
Response time / 反應時間
|
1 ms Max.
|
|
Ambient illumination/使用環境光源
|
Incandescent light / 白光 : 3,000 lux max.
|
|
Insulation resistance / 隔離阻抗
|
20MΩ min. (DC500V)
|
|
Voltage withstandabiligy / 絕緣耐壓
|
AC500V 60Hz for 60 Sec.
|
|
Operating temperature/工作溫度范圍
|
-20℃ ~ + 60℃
|
|
Ambient humidity/濕度范圍
|
35% ~ 85% RH 相對濕度
|
|
Protection degree / 防水等級
|
IP64
|
|
Vibration resistance / 耐震頻率
|
1.5 mm peak to peak amplitude, 10 to 55 Hz, 2 hours in X,Y and z directions
|
|
Shock resistance / 耐震度
|
50 G repeated 10 times each in X,Y and Z directions
|
|
Material / 外觀材質
|
PC
|
|
Wiring method / 出線方式
|
Pre-wired O4.2 x 2 M / 4-wires
|
M12 pigtailed type / M12 接頭式
|
|
Weight /重量
|
Approx.86g
|
Approx.26g
|

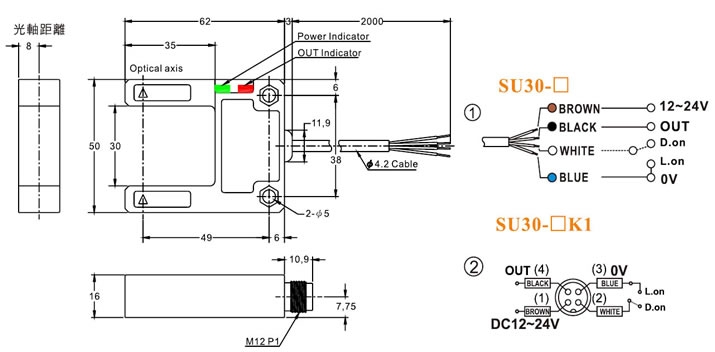

尺寸圖
應用例
●位置檢測
|
